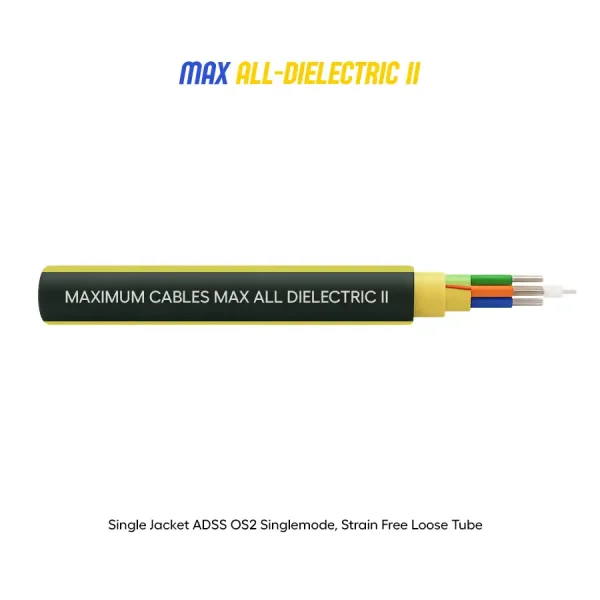

MAX ALL-DIELECTRIC II

PRODUCT DESCRIPTION
Single Jacket ADSS OS2 Singlemode Cables

PRODUCT DESIGN
Strain Free Loose Tube

FIBER COUNT
4 up to 24 Core

PHYSICAL PARAMETER
Outdoor Duct / Aerial Cable

CABLE DIAMETER
10.0 mm

OUTER SHEATH
Material MDPE

More Product Description

FEATURES / BENEFITS

Fiber Count 6 up to 288 with strain free fibers in a stranded loose tube design.
Most common and widely used design.
Complies with international or national standard (IEC, STEL-K)

CORE DIAMETER
1310 nm → 9.2 ± 0.4 µm
1550 nm → 10.4 ± 0.8 µm

CABLE CUT OFF WAVELENGTH
≤ 1260 nm

NOMINAL CABLE WEIGHT
75 kg/km

TORSION
150N, Number of Cycles : 10, Twist Angle : ± 180º

INTERNATIONAL STANDARD
ITU-T G.652C / D G.657.A1

NATIONAL STANDARD
NSI,TKDN
