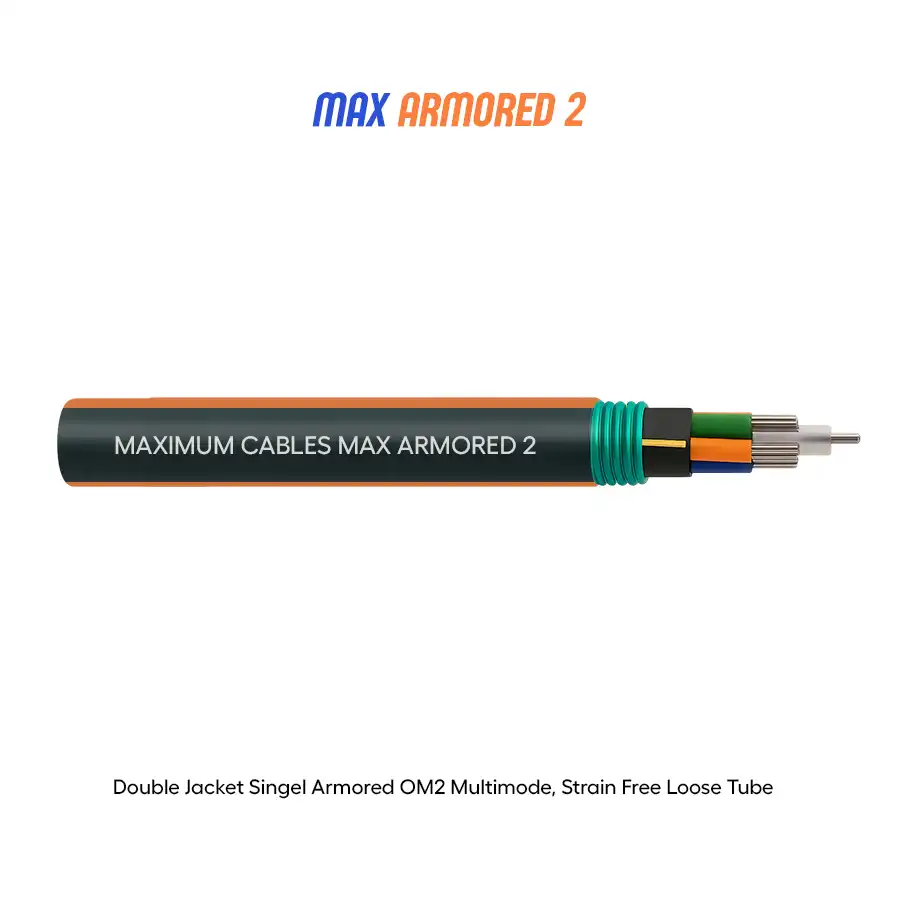

MAX ARMORED 2

PRODUCT DESCRIPTION
Double Jacket Single Armored OM2 Multimode Cables

PRODUCT DESIGN
Strain Free Loose Tube

FIBER COUNT
4 up to 72 Core

PHYSICAL PARAMETER
Outdoor Direct Burial Cable

CABLE DIAMETER
12.2 ± 0.2 mm

OUTER SHEATH
Material MDPE

More Product Description

FEATURES / BENEFITS

Fiber Count 6 up to 288 with strain free fibers in a stranded
loose tube design.
Most common and widely used design.
Complies with international or national standard (IEC, STEL-K).

FIBER DIAMETER
50/125 µm

ATTENUATION COEFICIENT
850 nm → Typical : 3.0 dB/km Maximum : 3.5 dB/km
1300 nm → Typical : 1.0 dB/km Maximum : 1.5 dB/km

NOMINAL CABLE WEIGHT
152 kg/km

TORSION
150N, Number of Cycles : 10, Twist Angle : ± 180º

INTERNATIONAL STANDARD
IEC, IEEE, ITU-T, ISO, GR-2-CORE

NATIONAL STANDARD
NSI,TKDN
