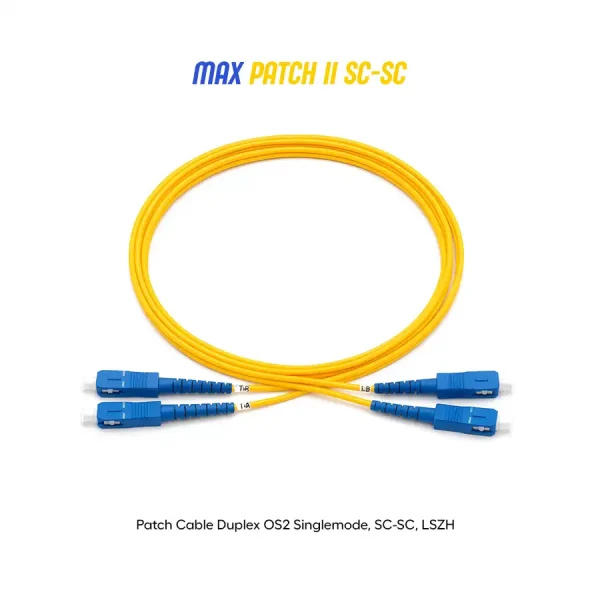

MAX PATCH II SC-SC

PRODUCT DESCRIPTION
Patch Cable Duplex OS2 Singlemode, SC-SC, LSZH

ZIPCORD TYPE
Duplex

CONNECTOR TYPE
SC-SC

TEMPERATURE
Operation : -20º to +70º C

THIGHT BUFFER
900 µ

OUTER SHEATH
Afumex LSOH Compound (Flame Retardant)

More Product Description

FEATURES / BENEFITS

High Connect Ability, High Precision, Low Insertion Lost, Low Back-Reflection Lost.
Standards AIA455, GR-326-Core.
Complies with Structured Cabling International Standard (IEC 11801, EN 50173, Bellcore).

NOMINAL OUTER DIAMETER
2×2.8 mm

REINFORMCEMENT
Aramid Yarns

FERRULE TYPE
Zirconia UPC/APC

APPLICATION
Telecommunication, Optical Network Equipment, Testing Instrument, CATV

INTERNATIONAL STANDARD
ITU-T G.652C / D G.657.A1

NATIONAL STANDARD
NSI,TKDN
